Technical Information

Six layers of protection to ensure safety

Overload protection

Automatically detects the charging power overload to protect the car from damage

Lightning protection

Waterproof device, not activated during lightning strikes.

Power outage protection

Automatic power cutoff, protecting the battery from damage

Leakage protection

Automatic power shutdown when abnormalities are detected, eliminating potential hazards

Idle protection

No power supply when the device is inactive to ensure safety.

Theft protection

Real-time electricity usage monitoring to prevent excessive usage

Technical specifications for VitaCharge

300 x 290 x 70mm

Control box dimensions

50Hz

Input frequency

10 sockets

Number of output ports

< 1.2kW

Power per port

< 7kW

Total power capacity

220VAC

Input voltage

220VAC

Output voltage

IP55

Waterproof standard

Output current per charging port

Indoor and outdoor usability

Operating environment

300mm
Length
290mm
Width
70mm
Height

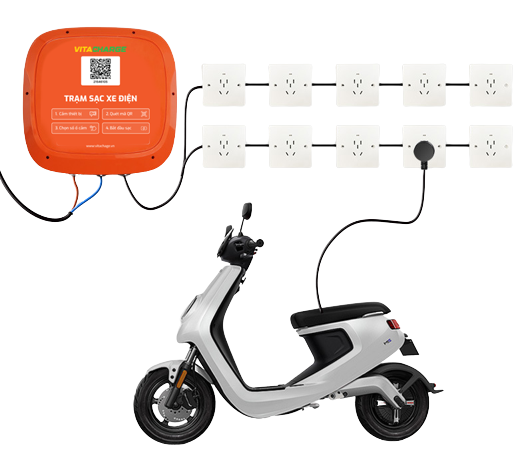

Instructions for charging your vehicle at VitaCharge station

Users move their vehicles to the electric charging area designated for two-wheelers.

Plug the charging cable into the socket of the charging station.

Open the VitaCharge app and scan the QR code attached to the control box or on the charging ports

Make a payment for the desired charging amount in advance. If the charging cost reaches the prepaid amount, the system will automatically stop the charging process. If the charging is completed before the prepaid amount is used up, the remaining balance will be refunded back

Select the socket on the app corresponding to the number on the station and confirm

Wait for the full charge or unplug if you want to stop the charging process before the electric vehicle is fully charged.
